Introduction
Foundation bolts are the heavy-duty champs that keep buildings, bridges, and machines locked tight to their concrete or masonry bases. In India, where projects have to battle earthquakes, salty coastal air, and brutal monsoons, the Indian Standard IS 5624:2021 is the go-to rulebook for these critical pieces. This article breaks down IS 5624:2021, diving into its specs, how it’s used, and why it’s a big deal for keeping stuff standing strong. Aimed at engineers, contractors, and Foundation Bolts Manufacturers, it’s packed with straight-up, practical info to tackle India’s toughest construction challenges.
Why Foundation Bolts Matter in India
Foundation bolts, sometimes called anchor bolts, are the beefy fasteners that pin buildings, bridges, or equipment to their concrete or masonry bases. They’re built to take on crushing weights, shaking machines, or even natural disasters, keeping everything steady. In India, with its booming cities, coastal zones, and quake-prone regions, these bolts are the backbone of projects that need to stand tall under pressure.
Keeping India’s Big Projects Solid
Picture a skyscraper shooting up in Delhi or a turbine cranking away in Tamil Nadu. Without foundation bolts, those could wobble or crash when things get rough. These bolts handle tension, twisting, and sideways forces, making sure structures stay put. India’s wild geography coastal rust, Himalayan shakes, and everything in between needs a killer standard like IS 5624:2021 to make sure Foundation Bolts Manufacturers churn out bolts that can take the heat.
How the Standard Got Started
Back in 1970, the Bureau of Indian Standards (BIS) rolled out IS 5624 to get foundation bolts in line. It’s been tweaked over the years to keep up with better tech and India’s growing construction scene. The 2021 version, the second big update, sharpens the rules to make bolts tougher, easier to pick out, and ready for today’s big projects.
IS 5624:2021 – What’s the Deal?
IS 5624:2021 is all about cast-in foundation bolts, the ones stuck in concrete or masonry while it’s still wet. It covers thread sizes from M8 (pretty small) to M72 (huge), so it’s got you covered for everything from factory gear to bridge supports.
What It’s About and What’s New
This standard is all about bolts set into concrete or masonry before it hardens. The 2021 update brought some solid changes to keep things tight:
- Spells out it’s for concrete and masonry foundations, no confusion.
- Ditched two shank types (D and G) to keep production simple.
- Hooks up with newer standards like IS 1367 for tech details and IS 14962 for thread accuracy.
- Made labeling clearer so you know exactly what you’re getting.
- Beefed up rules on sizes, materials, and coatings to make bolts last.
Sizes and Shapes That Get It Done
The standard lays out what sizes and shapes work:
- Thread Sizes: M8 to M72, so it’s good for small stuff or massive builds.
- Shank Choices: Go with a normal shank (same as the thread) or a slimmer one (close to pitch diameter), depending on what you need.
- Thread Ends: Short or long dog points, per IS 1368:2018, with incomplete threads kept short max twice the pitch.
- Tolerances: Threads stick to 8g (IS 14962), and the bolt’s shape follows grade C (IS 1367 Part 2).
Materials That Don’t Quit
Bolts have to be made of steel with at least a 4.6 property class, per IS 1367 (Part 3), which handles most jobs. For gnarly projects like quake zones, you can go higher, like 8.8 or 10.9, if the buyer and maker are cool with it. Common materials are:
- Carbon Steel: Tough and cheap for regular jobs.
- Stainless Steel: SS304 or SS316 for salty coastal spots where rust’s a pain.
- Alloy Steel: Super strong for heavy-duty stuff like big machines.
Keeping Rust Away
India’s rough climates think coastal salt or chemical plants call for coatings. Hot-dip galvanizing (IS 1367 Part 13) is a solid pick to fight rust. You can also go with zinc electroplating or fancy coatings like Xylan for super tough spots.
Designing and Setting Up Bolts Right
A bolt is only as good as how it’s made and put in. IS 5624:2021 lays out the steps to make sure bolts are built and installed to handle the big stuff.
Bolt Types for Every Job
Different bolts fit different gigs:

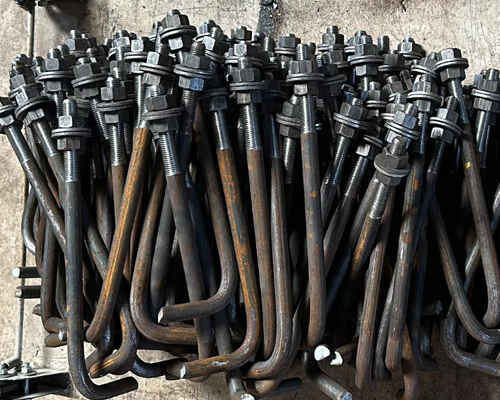

- L-Bolts: Bent end to grip concrete tightly, great for building columns.
- J-Bolts: Hook-shaped for locking down machines.
- Straight Bolts: Simple, stuck straight in for jobs with no side wiggle.
- Rag Bolts: Tapered with grooves, set in lead, perfect for crash barriers or heavy gear.
- Plate-Type Bolts: Got a plate to spread the load, used in bridges.
Nailing the Install
Getting bolts in right is everything:
- Before the Pour: Stick bolts in the concrete form first, using templates to keep straight.
- Grouting: Non-shrink grout fills gaps for a tight hold.
- Alignment: Jigs hold bolts steady while concrete sets.
- Rust Protection: Stainless steel or coated bolts keep going in rough conditions.
Handling Tough Forces
Bolts deal with all kinds of stress:
- Static Loads: The constant weight of a building or machine.
- Dynamic Loads: Vibrations from stuff like turbines.
- Seismic Loads: Quakes in India’s zones II to V need extra-tough bolts.
Foundation Bolt Application Guidelines Table
Selecting the right foundation bolt for a project under IS 5624:2021 is a make-or-break decision to keep structures safe and solid in India’s crazy conditions think coastal rust, quakes, or heavy machine vibrations. This table lays out clear, practical guidance on matching bolts to specific applications, considering project type, environment, and load demands. It’s a quick-reference cheat sheet for engineers and contractors to pick bolts that’ll hold up, backed by real-world examples from India’s big builds.
Choosing the Right Foundation Bolt for Your Job
Choosing the ideal foundation bolt isn’t grabbing one at random and praying it's finding the bolt that meets the job's requirements, be it the loads it'll experience or the conditions it'll operate in, and then staying within budget. Getting it wrong can cost a pretty penny or, worst of all, an unstable building. This section dissects the process of selecting the correct bolt using actual examples from India's largest projects so that engineers and contractors can get it right every time.
Matching Bolts to the Job's Forces
Begin with what the bolt's got to endure. Static heavy loads, such as those in a Mumbai skyscraper's columns, require L-bolts or plate-type bolts to distribute the weight evenly. Dynamic loads, such as the vibration of a turbine in a Maharashtra power plant, require high-strength alloy steel bolts property class 8.8 or 10.9, for instance. In seismic zones such as Assam, bolts require additional ductility so they don't snap when bent; hence, higher classes and custom designs are essential.
Dealing with India’s Environments
India's weather conditions are no laughing matter. Coastal installations, such as Chennai port upgrades, require stainless steel bolts (SS316) or Xylan coatings to combat salt corrosion. Inland locations, such as Rajasthan solar parks, can usually manage with around carbon steel and hot-dip galvanizing to pocket some savings. Always survey the location humidity, chemicals, or salt exposure to choose the appropriate material and coating. For instance, a Gujarat refinery employed SS304 bolts to combat chemical exposure, extending the lifespan.
Balancing Cost and Longevity
No one wishes to exceed the budget, but cutting corners on bolts is inviting disaster. For a Pune warehouse, carbon steel L-bolts save money without sacrificing IS 5624:2021 specifications. For high-stakes work such as a Kolkata bridge, indulging in stainless steel or higher property classes is worth it for longevity. Look at the Mumbai Metro: they utilized plate-type bolts with galvanizing to achieve the optimal balance of cost versus a 50-year lifespan.
Availing Expert Consultation
Collaborate with Foundation Bolts Manufacturers to customize bolts for individual requirements. A Tamil Nadu wind farm utilized specially specified length L-bolts to deal with extreme wind loads, developed in consultation with the manufacturer. Loop the project's structural engineer in always to cross-check specifications and prevent expensive mismatched installations.
Where Bolts Show Up in India
IS 5624:2021 bolts are all over India’s fast-moving industries, proving they’re up for the job.
Big Builds and Infrastructure
In construction, bolts keep things solid:
- Skyscrapers: Anchor columns to handle wind and quakes.
- Bridges: L-bolts and plate-types hold up piers, like Mumbai’s Atal Setu.
- Road Barriers: Rag bolts keep crash barriers steady for safer roads.
Industrial Heavy Hitters
Factories and plants count on bolts:
- Power Plants: Lock down turbines and generators against shaking.
- Petrochemical Sites: Stainless steel bolts fight off chemical rust.
- Sugar and Food Plants: Anchor equipment for smooth production.
Quick-Build Projects
Pre-engineered buildings (PEBs) for warehouses and factories use foundation bolts for fast, strong setups. IS 5624:2021 makes sure these bolts deliver.
Tackling the Tough Stuff
Meeting IS 5624:2021 ain’t always easy for Foundation Bolts Manufacturers, especially with India’s wild conditions.
Beating Coastal Rust
India’s 7,500 km coastline means salt air that chews up métal. Fixes include:
- Hot-Dip Galvanizing: A Thick zinc coat to stop rust.
- Stainless Steel: SS316 bolts for coastal or marine gigs.
- Special Coatings: Xylan or zinc flake for the worst spots.
Standing Up to Quakes
Earthquake zones need bolts that don’t crack:
- Stronger Classes: 8.8 or 10.9 for extra toughness.
- Custom Shapes: Special shanks and lengths for seismic jobs.
- Testing: Checks for fatigue and quake resistance.
Keeping Quality High
Top players like Varmora Forge use tight quality checks, top-notch materials, and precise production to hit IS 5624:2021. Certifications and inspections make sure bolts hold up in big jobs.
How IS 5624:2021 Stacks Up Worldwide
IS 5624:2021 takes tips from global standards like DIN 529 but is built for India’s unique challenges:
- DIN 529: Covers masonry bolts but misses quake concerns.
- ASTM F1554: Focuses on high-strength bolts, not so great for India’s climate.
- ISO 898-1: Sets strength rules, which IS 5624 uses via IS 1367.
- Its focus on India’s needs makes it a standout while still playing nice with global standards.
What’s Next for Foundation Bolts
As India’s projects get bigger, bolts are stepping up their game.
Tougher Materials
New stuff like duplex stainless steel or rust-resistant alloys makes bolts last longer, saving cash on fixes.
Smart Bolts
Bolts with sensors are popping up, tracking stress or rust in real time perfect for bridges or power plants.
Greener Ways
Eco-friendly coatings and recycling cut the environmental hit. Zinc flake coatings, for example, are less messy than old-school galvanizing.
Tips to Get It Right
Engineers and contractors can nail IS 5624:2021 with these moves:
- Pick the right bolt type for the job’s load and goal.
- Choose materials and coatings for the environment stainless steel for coasts, high-strength for quakes.
- Use templates and non-shrink grout for spot-on placement.
- Team up with certified Foundation Bolts Manufacturers for quality.
- Check bolts often for rust or wear, especially in rough spots.
Conclusion
IS 5624:2021 is the rock-solid foundation for India’s big projects, making sure foundation bolts can handle the country’s toughest challenges. With clear rules for size, strength, and materials, it helps Foundation Bolts Manufacturers deliver bolts that keep buildings, bridges, and factories standing tall. These bolts are the hidden muscle behind India’s growth, built to tough out storms, shakes, and time.
